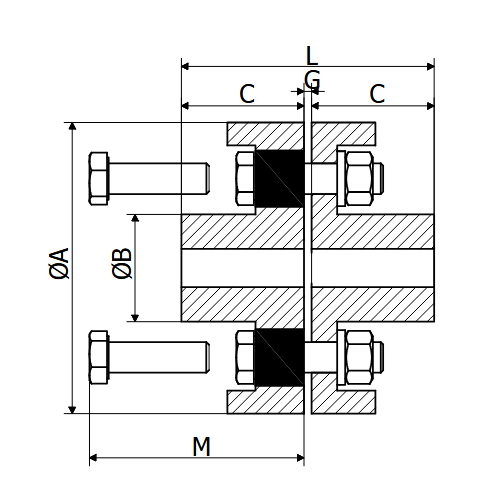

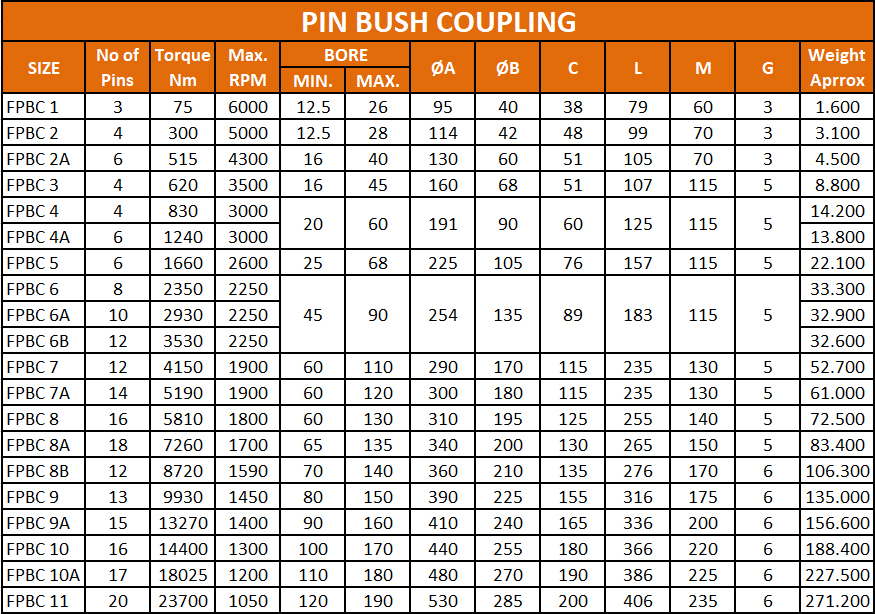

Product Name: Flexible Pin Bush Coupling (FPBC)
Capacity: Up to 23,700 Nm / 1050 RPM
Max Bore: 530 mm

• Compact & robust design
• High power-to-weight ratio
• Larger bore capacity
• Low backlash
• Easy maintenance Handles angular, parallel & axial misalignment
• Suitable up to 120°C (higher with special grease/oil)
