BRAKE DRUM WITH GEAR COUPLING

BRAKE DRUM WITH GEAR COUPLING

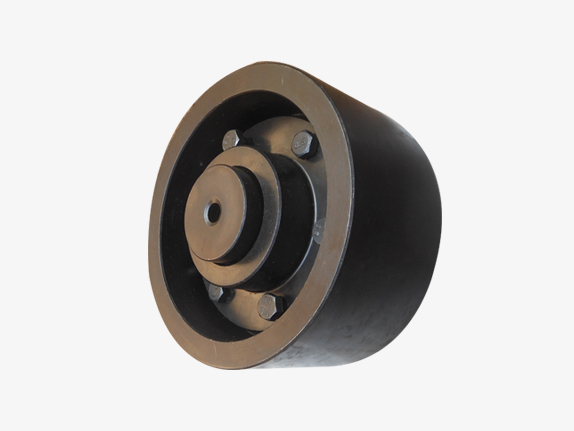

Product Name : FBDC (Brake Drum with Flexible Geared Coupling)
Capacity : 21950 Nm / 100 rpm
Max Bore : 130 mm (D1) / 120 mm (D2)

  • Compact unit with brake drum and flexible gear coupling
  • High torque transmission capacity
  • Handles angular, parallel & axial misalignments
  • Rugged design for heavy-duty applicationsx
  • Accommodates Angular, Parallel & Axial Misalignment.
  • Generally used upto 120°C. Can be used for higher temperatures by using proper grade of grease or oil.

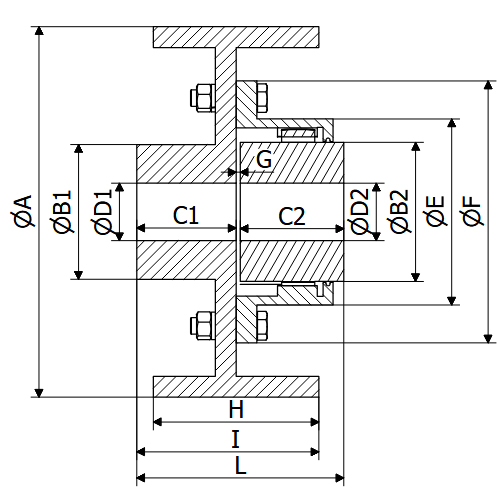

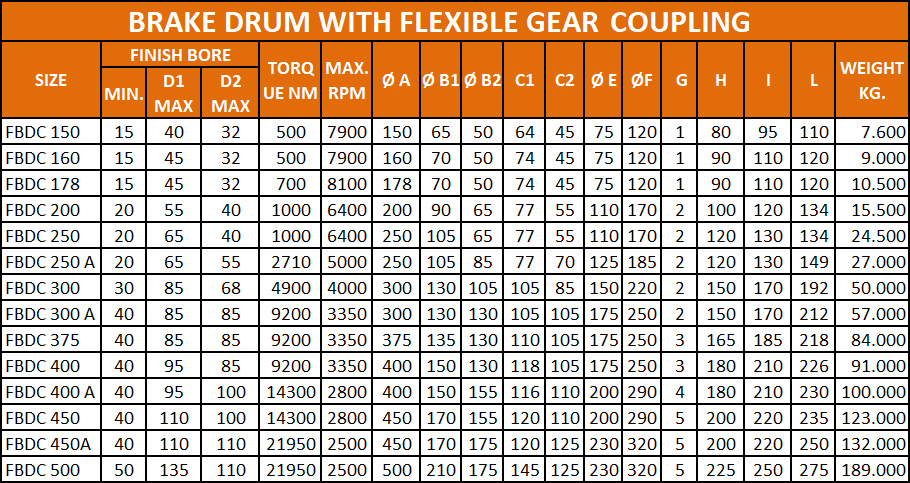

Brake Drum with Gear Coupling
